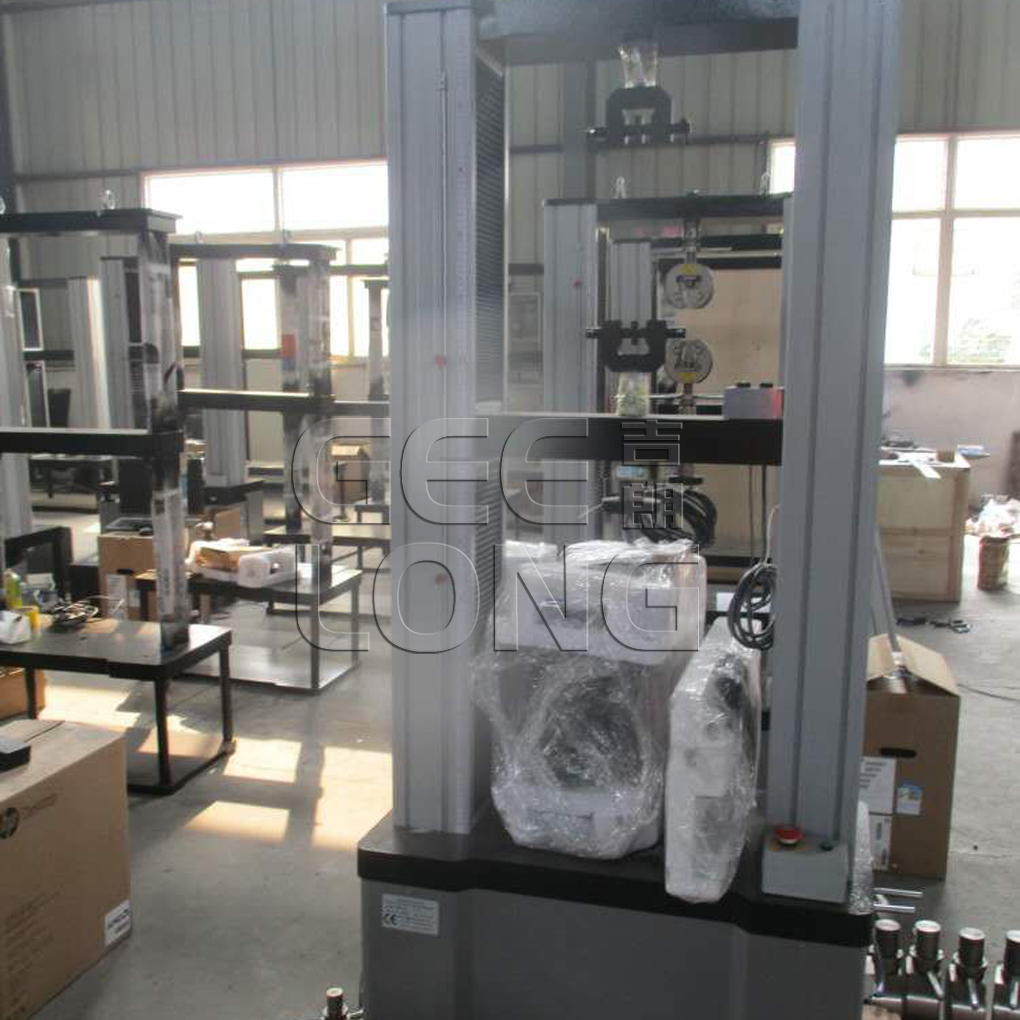

Computer control wood-based panels testing machine made for the wood manufacturing and quality supervision station. Can do the following test: bone strength, surface bone strength, tensile strength, static bending strength, modulus of elasticity test, screw griping test and shear test of of MDF,shaving board, plywood, core-board.
Standard:
GB/T17657-1999, EN, ASTM, GB/T 16491-1996
Technical parameter:
Model | MWW-10 | MWW-20 | MWW-50 |
Max test load | 10kN | 20kN | 50kN |
Control method | Computer automatically control | ||
Accuracy | 1 class | ||
Test load test range | 2%～100%F·S | ||
Test value relative error | ≤±1% | ||
Displacement value relative error | ≤±1% | ||
Displacement resolution | 0.01mm | ||
Speed adjusting range | 0.05-500mm/min | ||
Speed relative error | ≤±1% | ||
Effective tensile space (mm) | 700mm | ||
Effective compression space (mm) | 650mm | ||
Effective test width (mm) | 400 | ||
Power supply | AC220V±10%，50Hz | ||
Package list:
Name | Quantity | |
10KN high strength host | 1 pc | |
High precision photoelectric encoder | 1 pc | |
Digital servo control system and digital servo control motor | 1 set | |
High precision ball screw assembly | 2 sets | |
High precision arc synchronous gear system | 1 set | |
High precision arc synchronous gear system | 1 set | |
Special measurement and control system | 1 set | |
Under WINDOWS operating environment MAXTEST special software | 1 set | |
LENOVO computer | 1 set | |
HPA4 printer | 1 set | |
Packing list | 1 set | |
Operation manual | 1 set | |
Quality certificate | 1 set | |
Standard configuration with 6 sets testing fixtures as below | ||
Surface bonding strength testing fixture | 1 set | |
Internal bonding strength testing fixture | 1 set | |
Screw holding strength testing fixture | 1 set | |
Static bending strength testing fixture | 1 set | |
Elastic modulus testing fixture | 1 set | |
Screw griping testing fixture | 1 set | |
Software interface:
Fixture drawings:
