The electric heating boiler is an environmentally friendly heat-conducting oil furnace that uses heat-conducting oil as the medium and uses electric heating. Electrical boiler machine can be used in plywood machine area, like plywood hot press machine, short cycle lamination hot press machine, multi layer lamination hot press machine, welcome to inquiry geelong brand electricial boiler machine.
型Model | 单位UNIT | TOB-20 | TOB-30 | TOB-50 | TOB-75 | TOB-100 | TOB-150 |
温控范围 Control range | ℃ | 300℃ | |||||
温控精度 Temp.control accuracy | ℃ | PID±1℃ | |||||
电源 Power supply | AC 3φ380V50HZ（or other)或其它 | ||||||
传热媒体 Heat.transfer medium | 导热油CEAT TRANSFER OIL | ||||||
冷却方式Cooling method | 间接冷却INDIRECT C00LING | ||||||
加热能量Heating capacity | KW | 18/24 | 24/30 | 36/50 | 60/70 | 80/100 | 110/150 |
泵浦马力（功率）Horsepower of Pump | HP/KW | 2/1.5 | 3/2.25 | 5/3.75 | 7.5/5.6 | 10/7.5 | 15/11 |
泵浦工作流量 Working flow of pump | L/MIN | 50 | 180 | 250 | 300 | 500 | 750 |
泵浦工作压力Working pressure of pump | KG/C㎡ | 2.5 | 2.8 | 3.2 | 3.8 | 4.9 | 4.0 |
大电力消耗Maximum power consumption | KW | 19/26 | 26/27 | 29/50 | 66/68 | 72/100 | 106/132 |
警报功能 Alarm function | 缺相/缺油/超温/过载/反转 | ||||||
冷却水配管Cooing water pipework | INCH | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
循环油配管Circulation oil pipe | INCH | 3/8x2 | 3/8x4 | 3/8x4 | 3/8x4 | 3/4x4 | (3/8x4)x2 |
外型尺寸 LxWxH | MM | 1050x420x960 | 1050x420x960 | 1560x580x1310 | 2000x600x1600 | 2000x600x1600 | 2000x600x1600 |
重量 Weighht | KG | / | / | / | / | / | / |

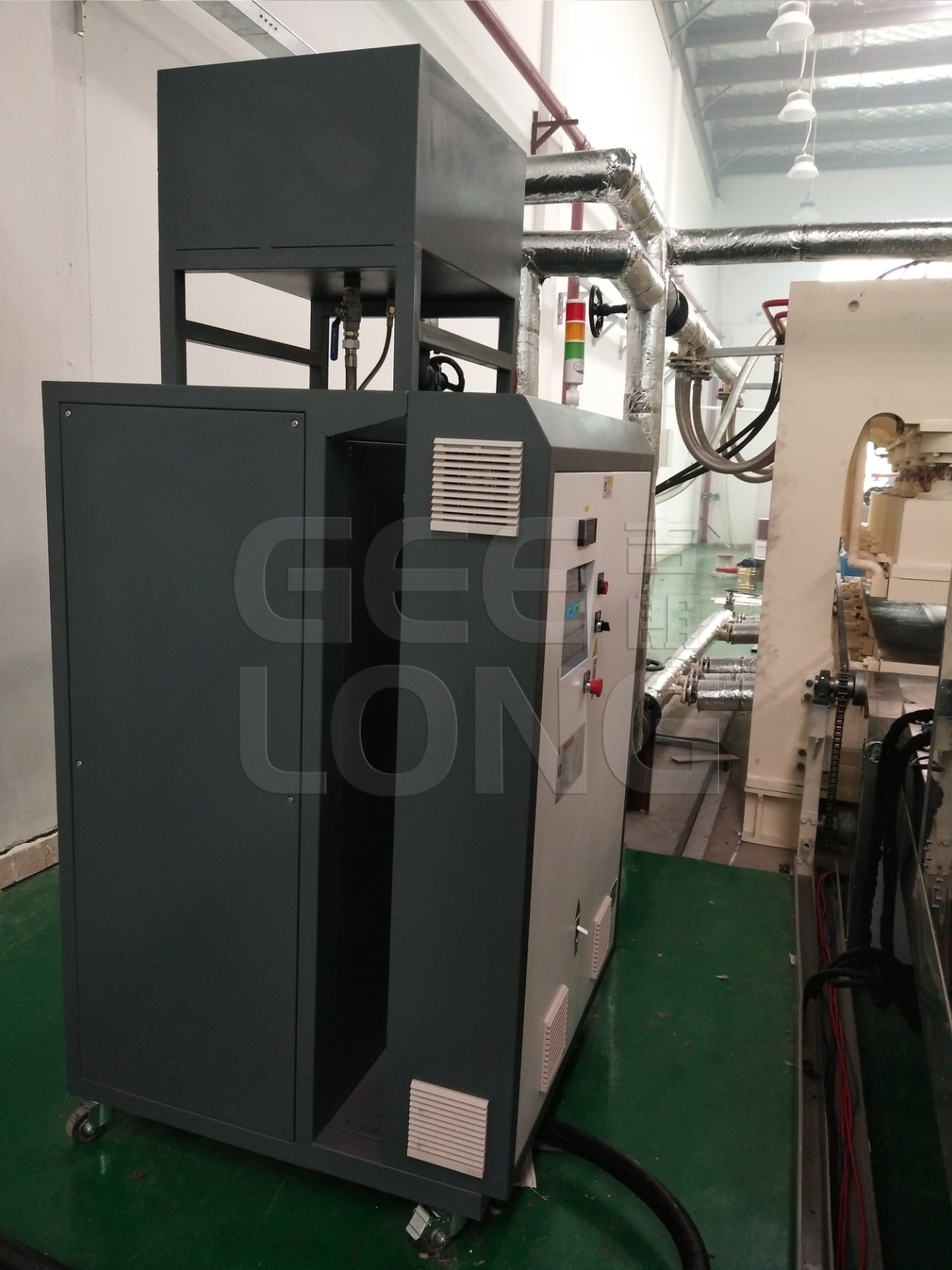

Electrical boiler using position:
